Lateral Pile Analysis: Episode 2 - How Does Lateral Pile Analysis Software Actually Work?

In short, every program follows the same logic — it turns the pile into a series of small beam elements and the soil into springs that react to movement. Then it runs an iterative numerical process (usually the finite difference method) to find how the pile and soil interact under load.

The process goes like this:
1- The software assumes an initial deflected shape for the pile.
2- For each depth, it reads a soil spring stiffness and resistance from predefined p-y curves based on soil type and loading.
3- It solves the beam equation numerically to get new deflections.
4- It repeats the cycle until the results stop changing — that is convergence.

The important thing to remember is that the p-y curves are empirical; they come from real tests, not theory. They are already built into the software.

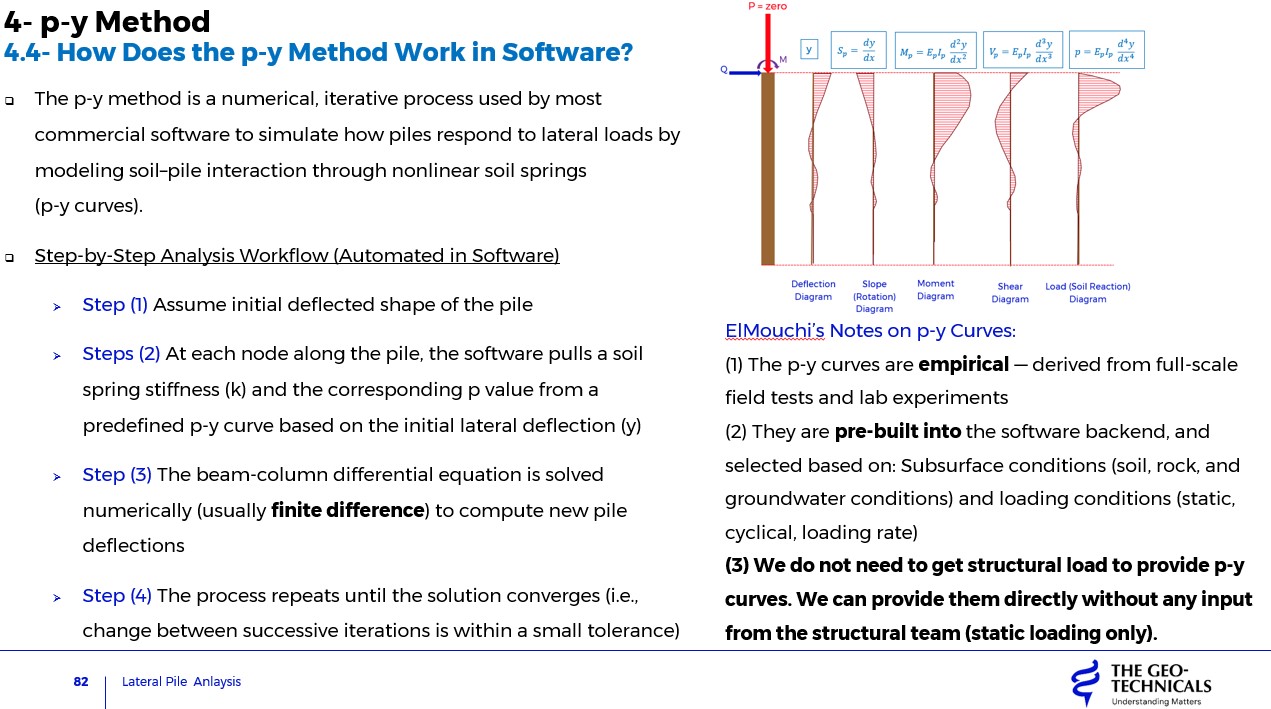

This slide below is one of many from my upcoming Lateral Pile Analysis Course, where I explain this process step-by-step and discuss how to interpret each output correctly.
